2 PARKING SENSORS KIT WITH 170° HD REARVIEW CAMERA 3 IN 1 PRO FUZION

Kit 2 Car park sensors with 170° color HD Retrocamera and 2 Led SMD + night vision and 3 in 1, suitable for reverse, with wide 2.5Mt high quality distance detection system. 0Cm. with acoustic warning and detection of the distance to Video reported on the Monitor in numbers multiple obstacle approach lines Right or Left(See product photos), easy installation, suitable for video parking systems and maneuvers control, compatible with all multimedia systems for Vehicles and DVDs with RCA video input.

Compatible with all systems Stereo, Monitor and display with RCA video input (not included, available on our Shop)

N.B. The whole body of the backroom is made of ABS and Metal, product of High quality band.

Professional Park Assist Systems, safe maneuvers! Automatic system activation, with the insertion of the reverse, quality sensors for a complete coverage of the entire width of the vehicle, designed for all weather conditions, sound alarm included, distance detection from 2.5 meters to 0cm. Our systems are of high quality certainly the most accurate, precise and well-made, can be easily installed on any type of vehicle, Cablings and sensors are double shielding with quick release pins (for possible disassembly without having to remove the whole system).

Video systems with parking sensor facilitate all the manoeuvres, even the most difficult retromarce. They ensure safe maneuvers by warning of the presence of people or animals or things. They also identify unseen obstacles, avoiding expensive repairs. No more bumps to park, so a safe help in any situation. Ideal for cars, vans, and any other means.

The approach to the obstacle is indicated by means of intermittent acoustic/sonor signaling, whose frequency increases to the decrease of the distance from the obstacle until it becomes continuous near the same, Further signaling will be visible on the monitor by means of indication in Numbers and colored(See product photo), Video signaling instead will be reported on the monitor In HD and with Active Guidelines

SCHEDA TECNICA SENSORE DI PARCHEGGIO:
- Rated voltage: DC12V.
- Operating voltage: DC9V-18V.
- Power: 2.2W.
- Operating temperature: -20°C---60°C.
- Distance detection: 0Cm.-2.5M.
- Detection angle: H>80°,V>80°.
- Cicaline power: 60Db.
- Dual-shift sensors and wiring, system with quick release plugs.

TECHNICAL RETROCAMERA:

• Image sensor: 1/4 CMOS Sony HD Colors
• Guidelines: YES
• Adjustment: SI inclination
• Night Vision: 2 Led SMD + Smart Night Vision
• Min. Lux: 0.1
• TV system: PAL/NTSC
• Area Image: 4.3mm×3.4mm
• Actual pixels: 720 x 576 pixels
• Objective: f = 5.9 mm / F = 2.0
• Resolution: 580TVL
• Waterproof: IP67/IP68
• Video output: RCA connector
• Horizontal visual angle: 170°
• Visibility to light: 16.5 metres
• Power supply: DC12V. (9V–14V)
• Supported temperature: -20°C—75°C
• AV cable: 6 meters
• Compatible with all systems Stereo, Monitor and display with RCA video input

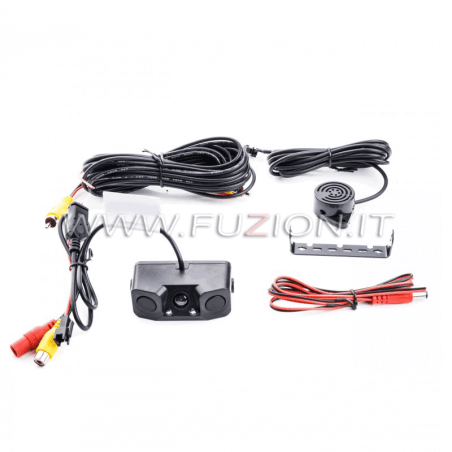

CONTENT IN CONFETION:
- N°1 Body 2 Sensors and Black Retrocamera
- No.1 Acoustic alarm with 3Mt cable.
- N°3 Tilt mounting bracket.
- N°1 Video cable RCA 6Mt.
- N°1 Power cord.
- N°1 user manual and installation.

Product Homologation
WARRANTY: 5 YEARS
